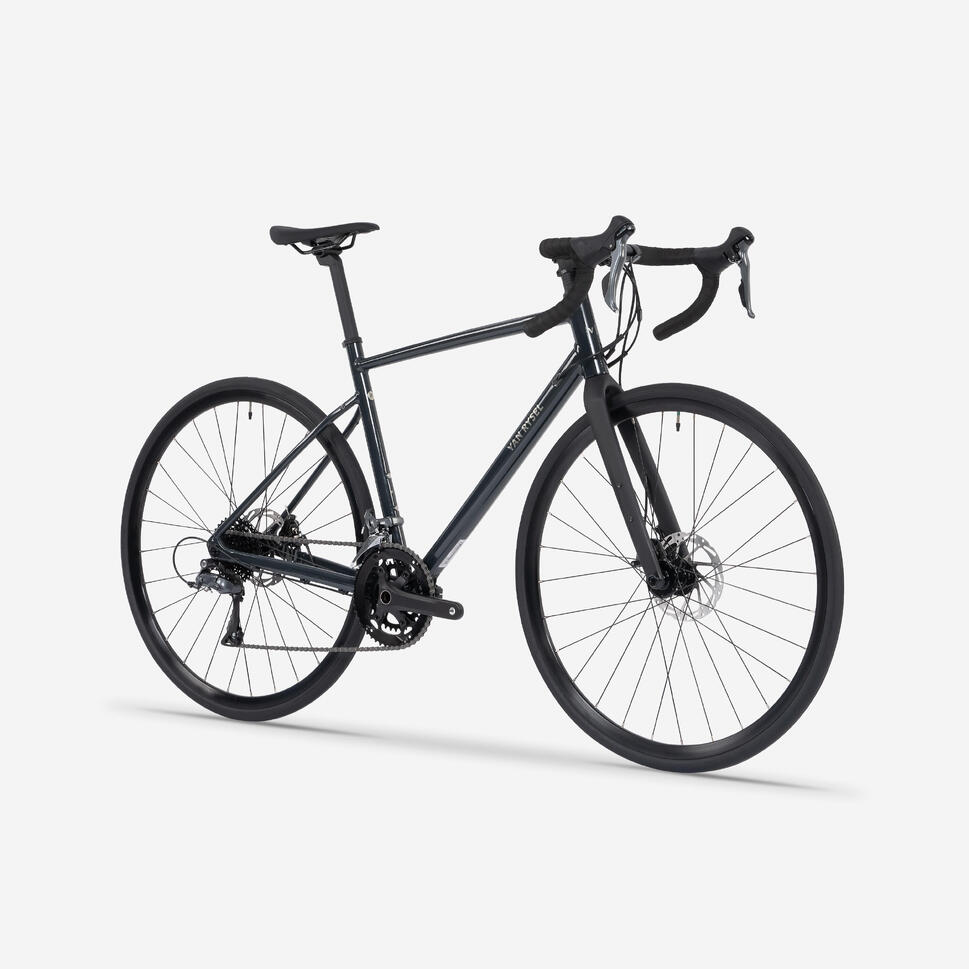

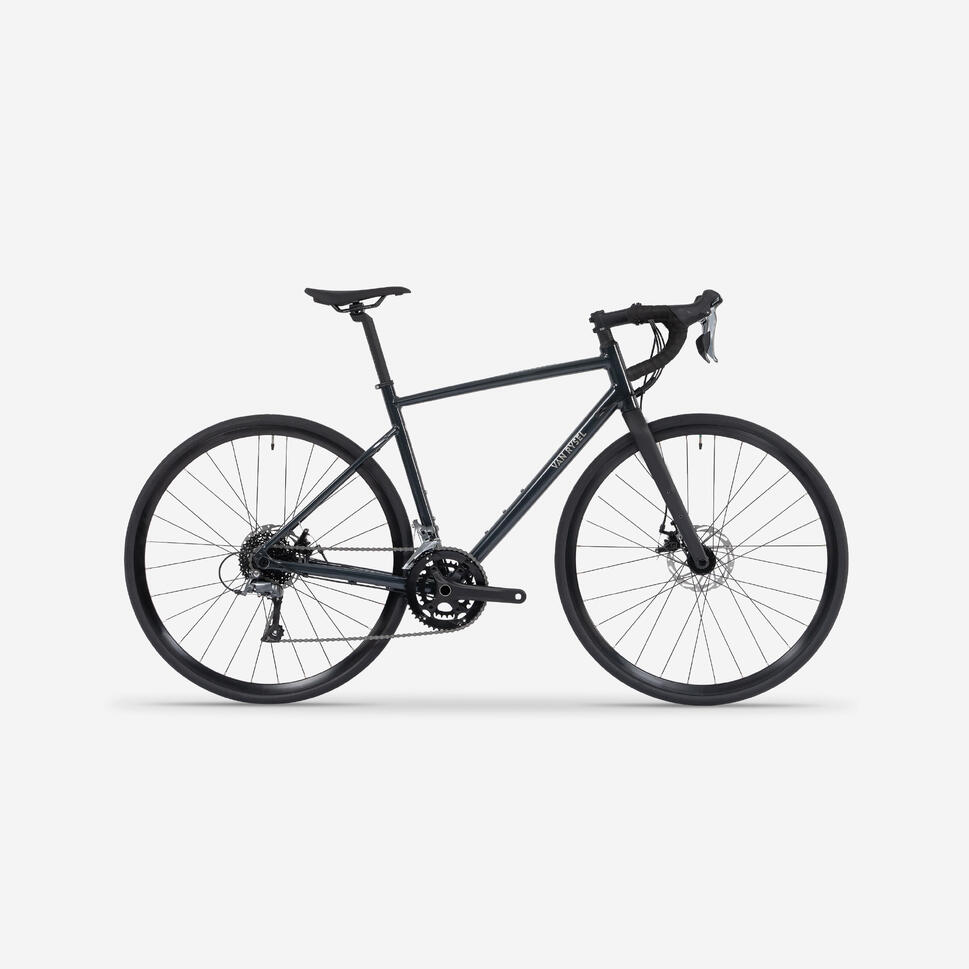

EDR AF CLARIS

The EDR AF Range

The EDR AF is built for adventure—whether you're tackling regular commutes or gearing up for a long weekend ride. Designed for comfort and versatility, this bike lets you escape the ordinary and take on new roads. The updated geometry enhances control and stability, while clearance for up to 35mm tires (700c) ensures you’re ready for all roads.

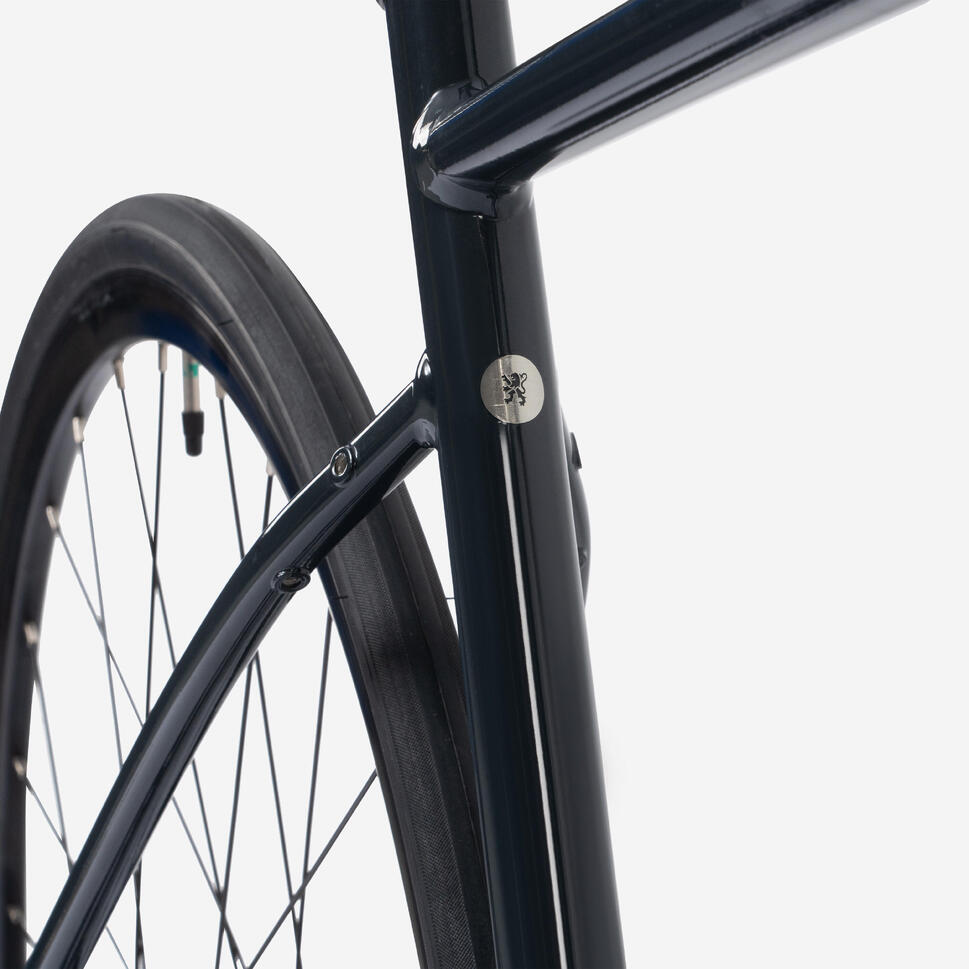

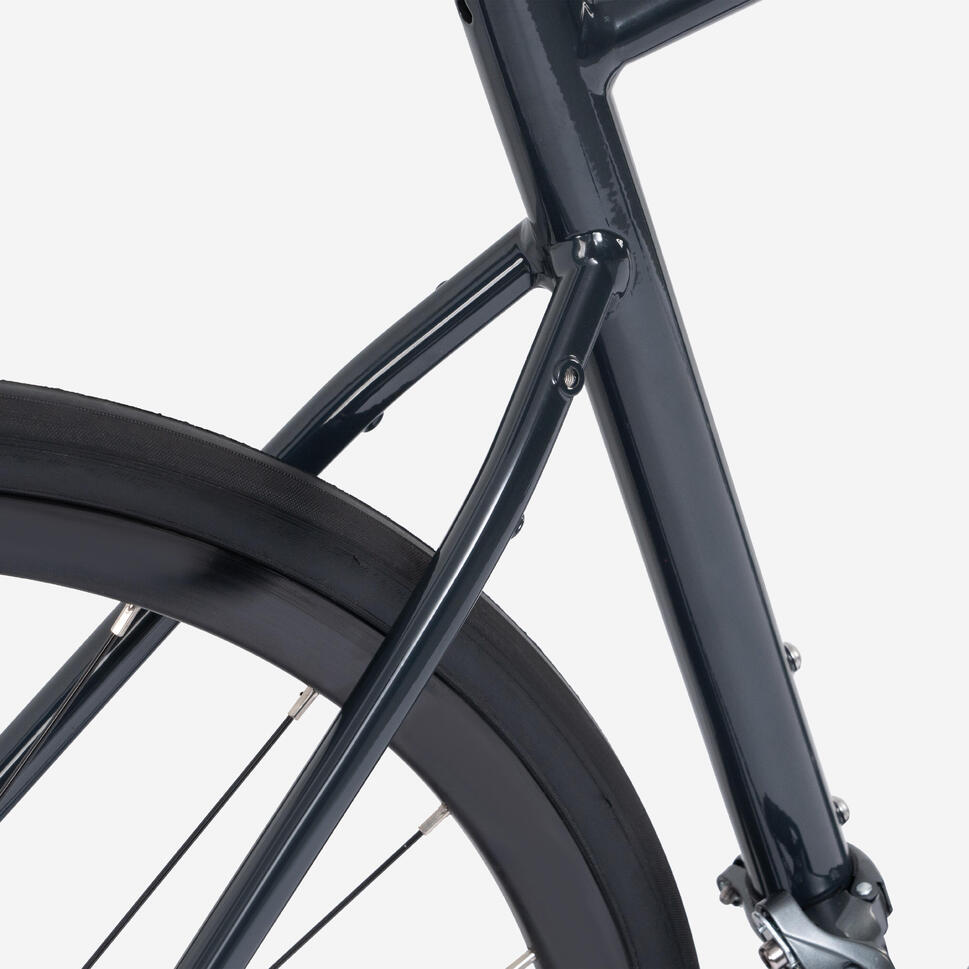

High-Quality, Comfortable Aluminum Frame

Made from double-butted 6061 aluminum, the EVOG22 frame balances weight and responsiveness for a lively ride. Engineered for comfort, it accommodates up to 50mm tires. Frame weight: 3.24 lbs (1,470g) in size M.

Carbon Fork

A carbon fork provides stiffness for efficient power transfer, while an aluminum steerer adds durability. Three side mounts let you attach extra gear for long adventures. Compatible with up to 35mm tires.

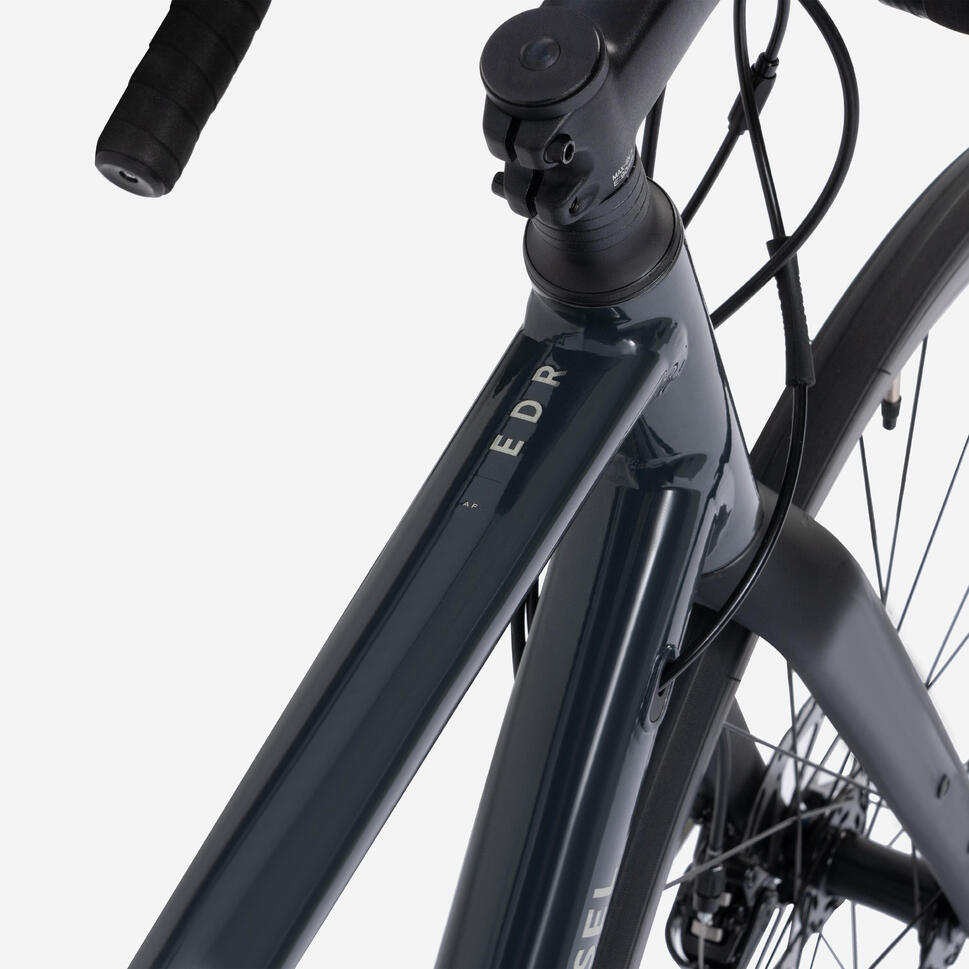

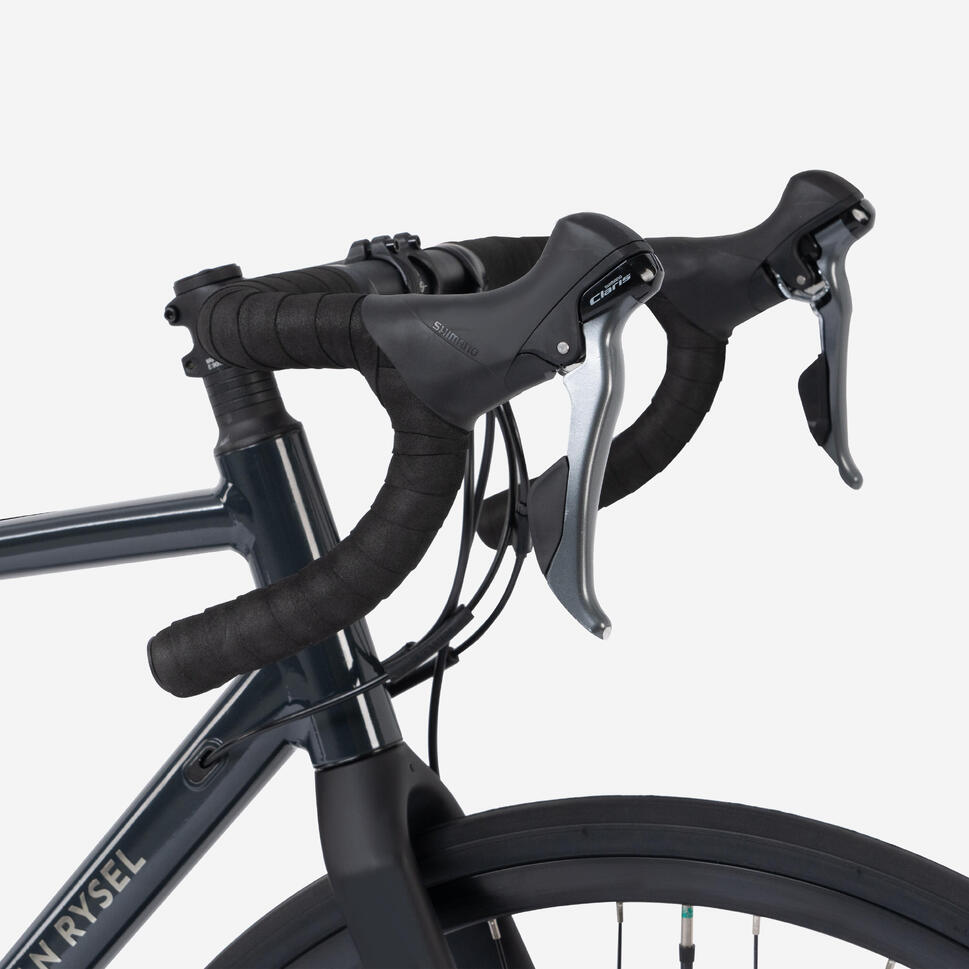

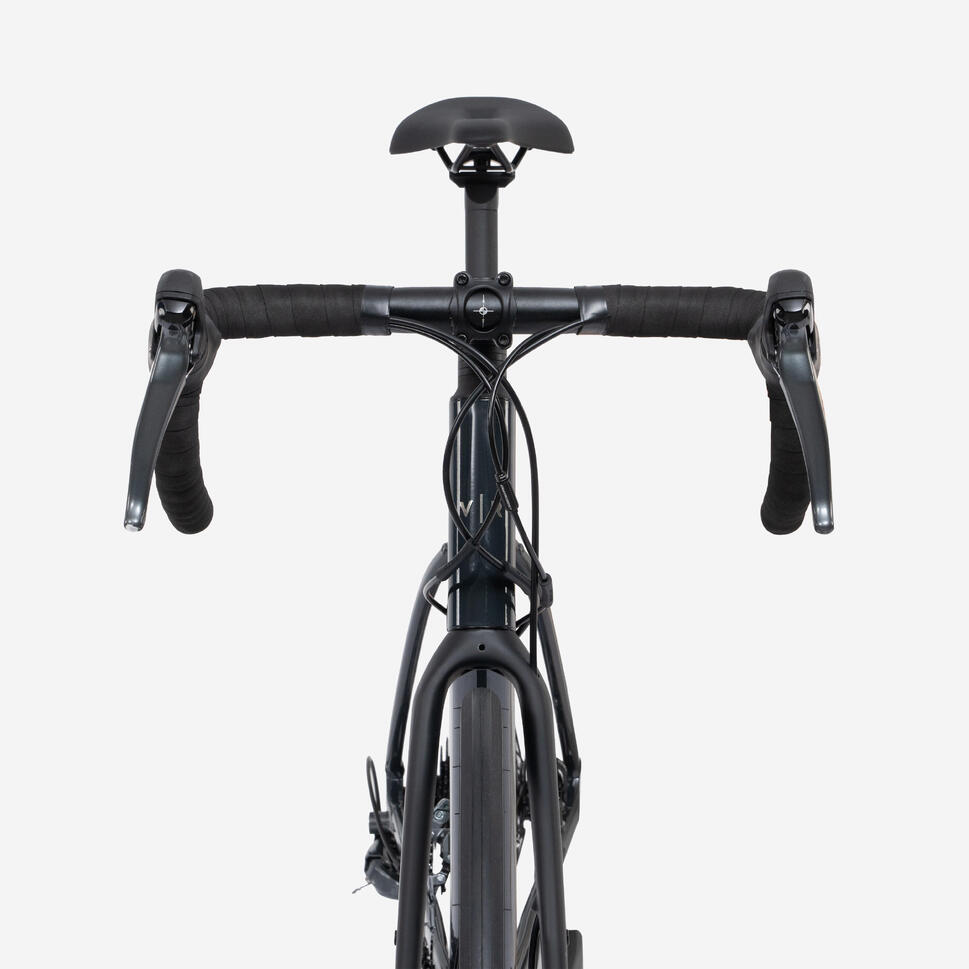

Riding Position: Handlebar and Stem

The 31.8mm diameter 6061 T6 aluminum handlebars feature a comfortable shape for long days in the saddle. Width varies by size:

• S/M – 400mm
• L/XL – 420mm

The stem has a ±7º angle, with lengths by size:

• S – 80mm
• M – 90mm
• L – 100mm
• XL – 110mm

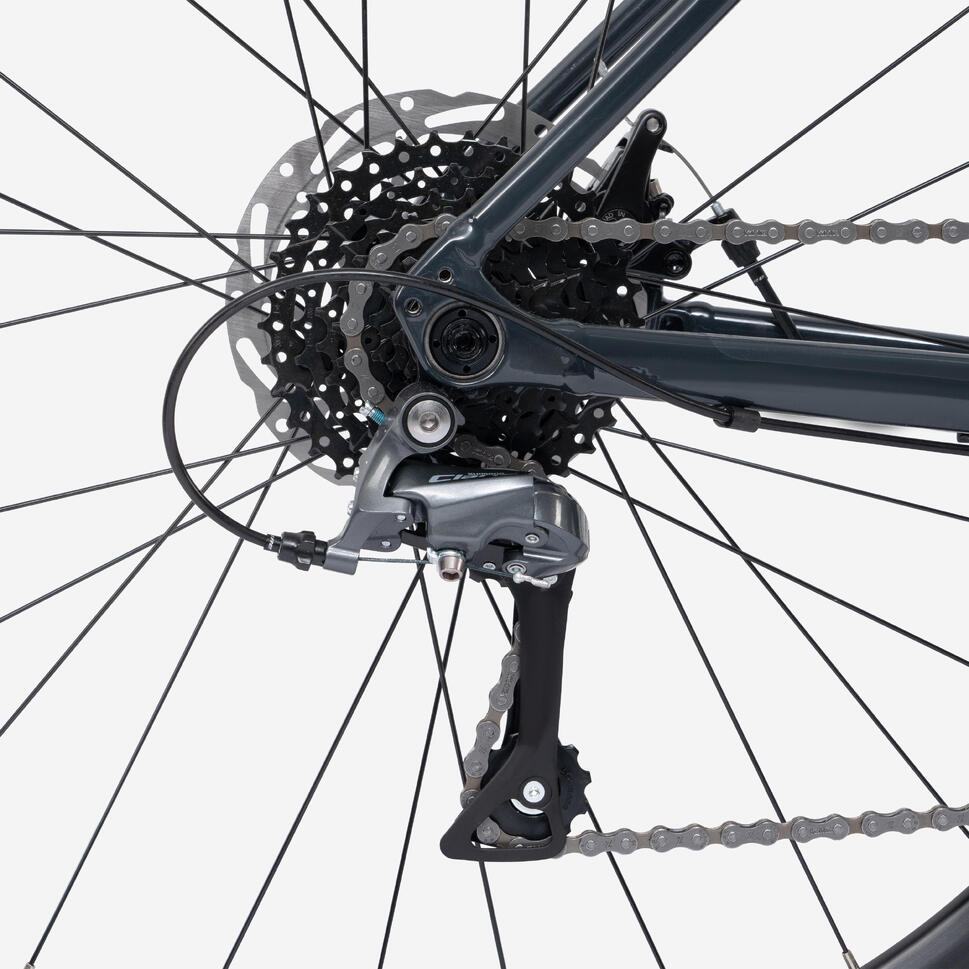

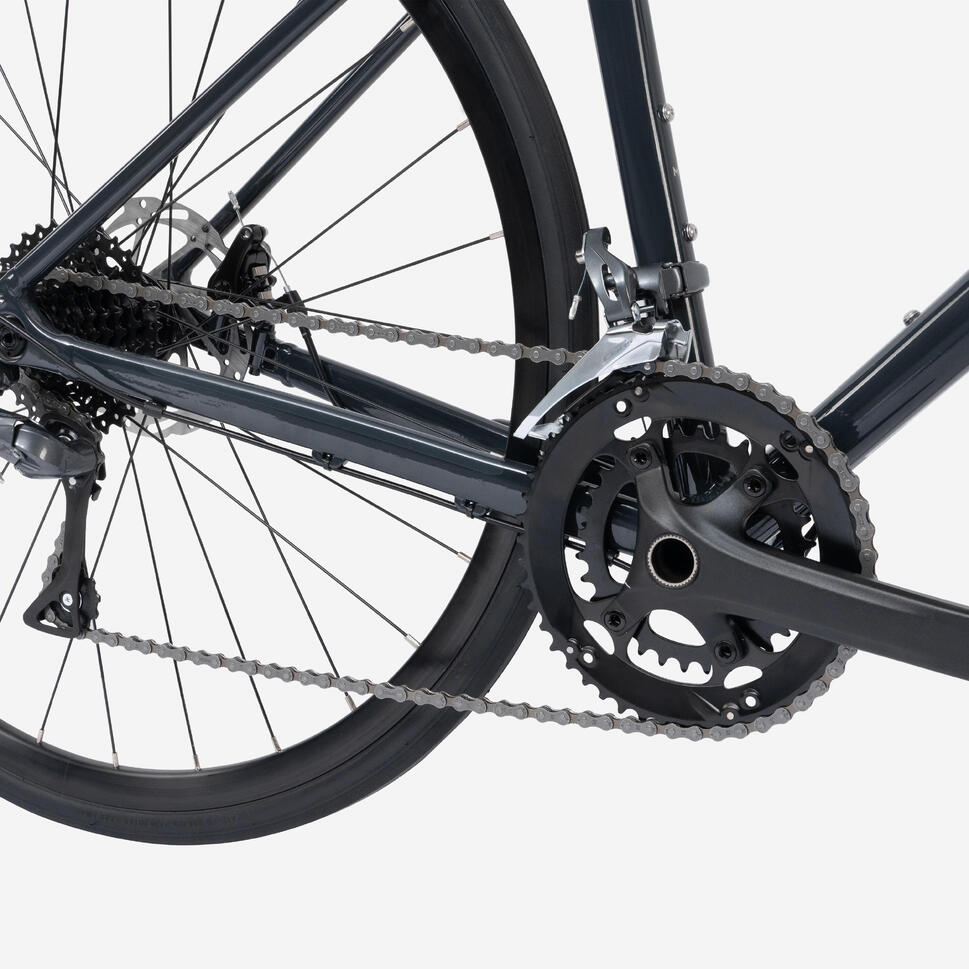

Shimano Claris 8 -Speed Drivetrain

This bike features a Shimano Claris 2x12 drivetrain for smooth and precise shifting.

• Shifter: Shimano Claris 2 x 8-speed
• Crankset: Prowheel 1-piece, 48/32T
• Rear Derailleur: Shimano Claris RD-2000
• Cassette: Microshift H81, 11-34T
• Chain: KMC Z-7
• Bottom Bracket: Prowheel BB68

Crank Lengths:

• S/M – 170mm
• L/XL – 175mm

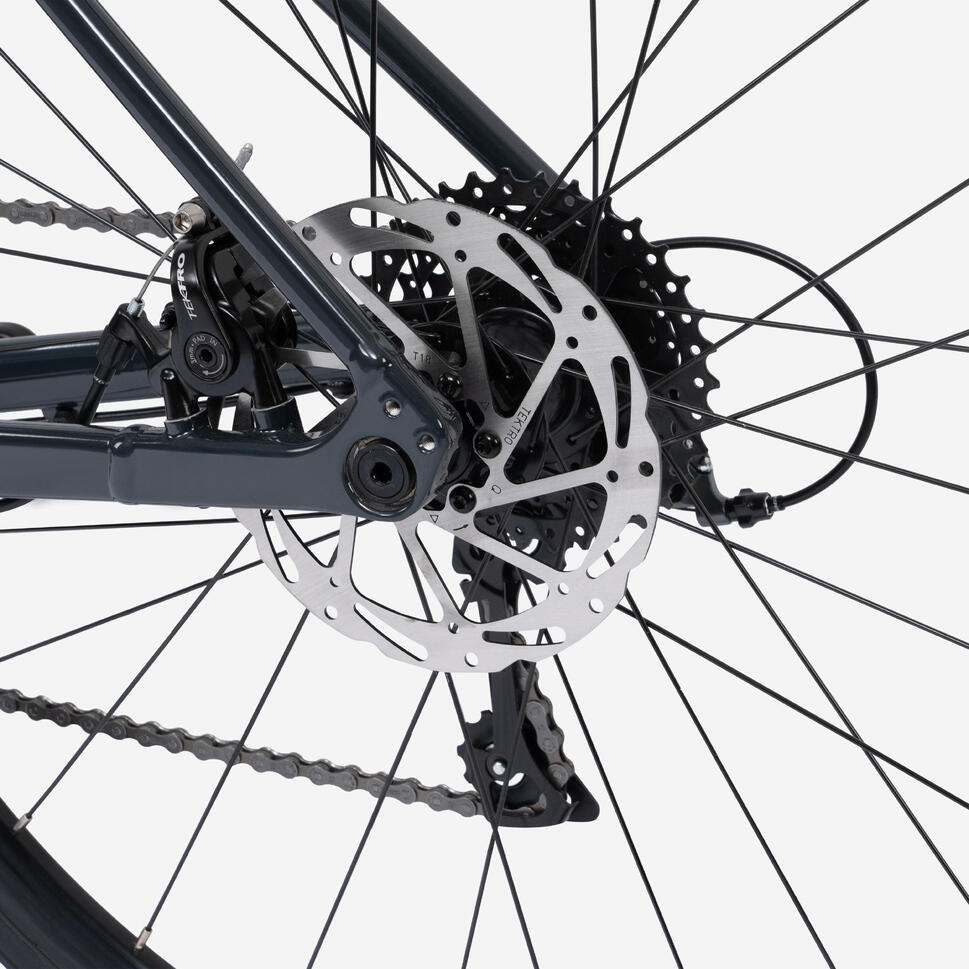

Mechanical Disc Brakes

• Brakes: Tektro MD C550
• Brake Levers: Shimano Claris

Delivers powerful, precise braking with simultaneous pad engagement and easy adjustability.

Aluminum Wheels Designed for All Roads

• 6069 aluminum rims
• Tubeless-ready (kit not included)
• Compatible with 25-35mm tires

Comfortable Saddle & Seat Post

• Decathlon Comfort 30º saddle with steel clamp (155mm width, 250mm length)
• 6061 T6 aluminum seat post (27.2mm diameter)
• Height: S: 250mm | M/L/XL: 350mm
• The natural flex of the 27.2mm seat post absorbs vibrations for a smoother ride.

What's Included with Your EDR AF:

• Platform pedals (clipless recommended for performance)
• 1 bell
• Front & rear reflectors.

Care Tips

Avoid high-pressure water when cleaning to protect components. Clean your bike after muddy or dusty rides, and always check tire pressure and brakes before heading out.

Frame Protection

Use transparent protective stickers when mounting bags or accessories to prevent wear.

Choosing Your Size

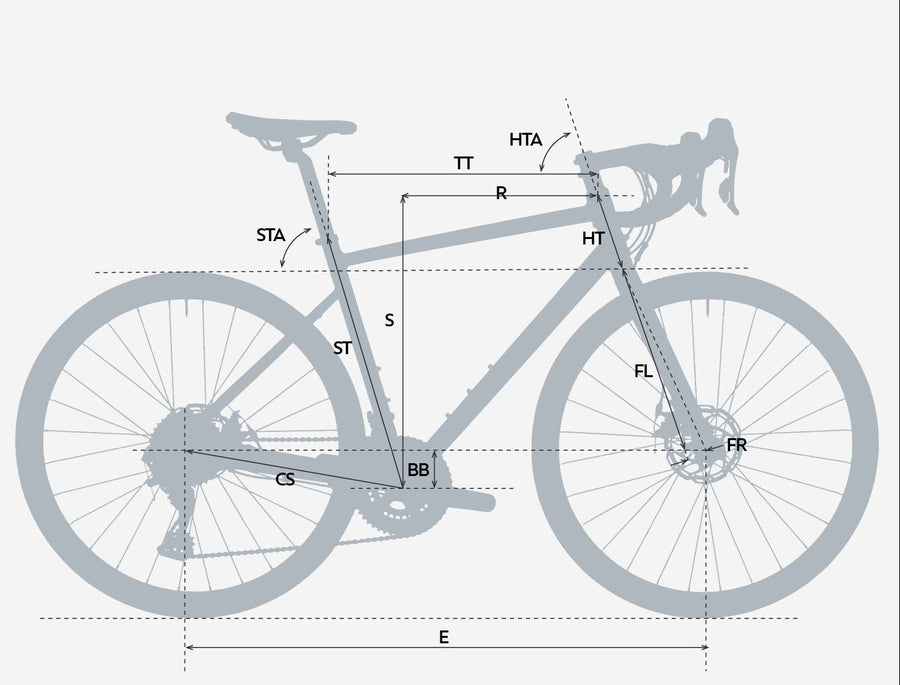

Select your size based on height and body proportions. If you're between sizes, opting for the smaller size provides better control on technical terrain. Refer to the geometry chart for more detailed measurements and fit guidance.

Warranty

• Lifetime warranty on the frame & fork
• 2-year warranty on paint and components (excluding wear items)

Product Disclaimer

Specifications and features may change without notice. We strive for accuracy but cannot guarantee all descriptions, images, or details are error-free. Variations do not warrant modifications, exchanges, or refunds. Products may be updated or discontinued at any time. For more info, contact customer support.
