The RCR range
The RCR lineup is built for cyclists who refuse to compromise. Every tube’s cross-section is engineered for optimal efficiency in key wind angles (-15° to +15°).
This "lightweight aero" bike strikes the perfect balance of weight, stiffness, and aerodynamics—delivering an exceptional ride. If you're looking for a race-winning machine, the RCR is it.
RCR vs. RCR Pro: What Sets Them Apart?
The Van Rysel RCR and RCR Pro share the same aggressive race geometry, but the difference comes down to carbon technology. The RCR uses high-modulus carbon for a stiff, efficient ride that delivers speed and responsiveness. The RCR Pro takes it further with super high-modulus carbon, reinforcing key stress points while shedding weight for an even more explosive feel. Designed for elite-level racing, the RCR Pro frame is the same one used by Decathlon AG2R’s WorldTour riders.
A Closer Look at the Frame
The RCR frame weight (size M, painted): 1.83 lbs (830 g)
RCR Pro frame weight (size M, painted): 1.74 lbs (790 g)
RCR fork weight (size M, painted): 0.84 lbs (380 g)
Tire clearance: Up to 33 mm
Color variations may cause slight weight differences (+/- 0.11 lbs | 50 g)
Never clamp a carbon frame (top tube, seat tube, down tube) in a work stand or bike rack—carbon is rigid but vulnerable to compression.

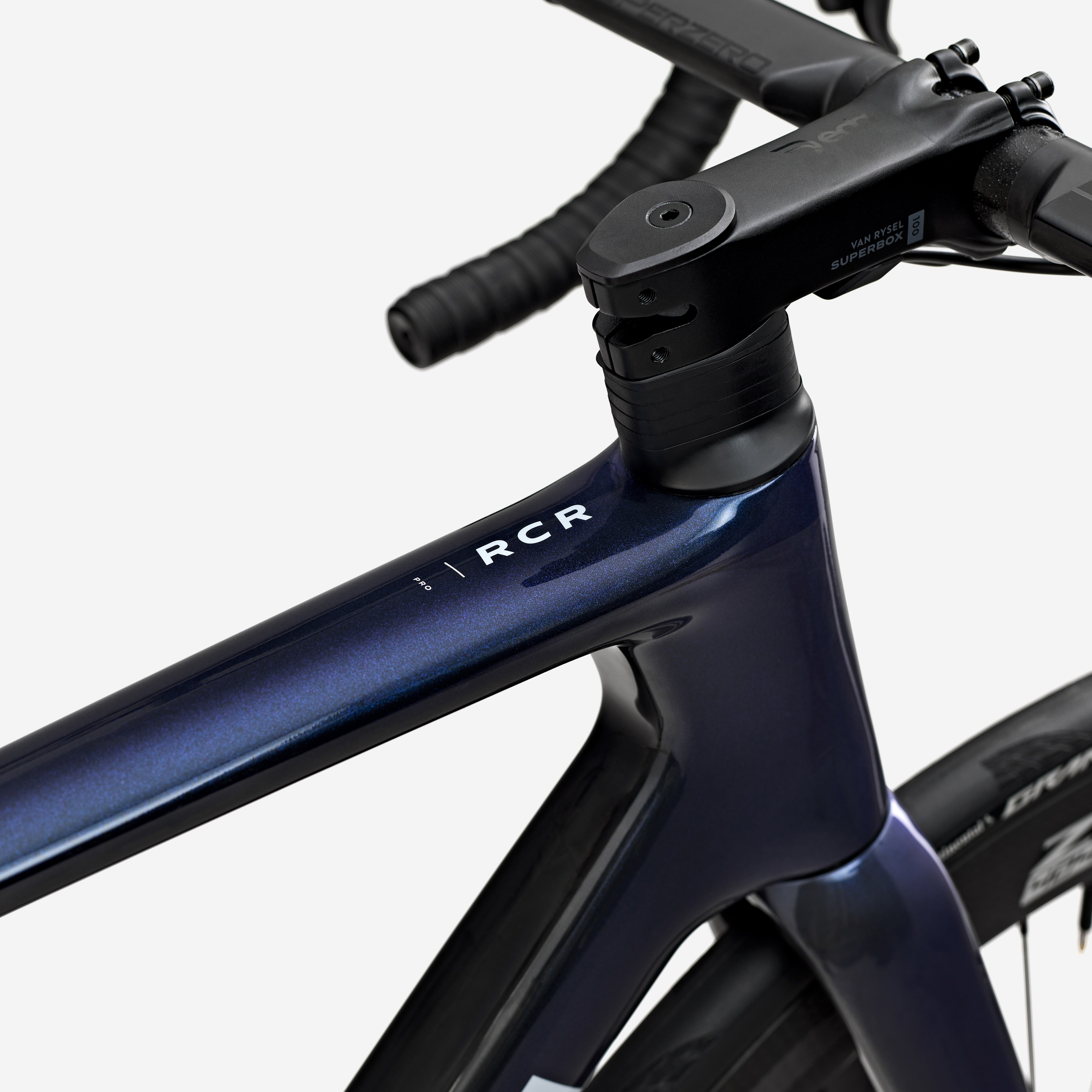

Cockpit
The RCR’s cockpit is designed for precise handling and easy maintenance, with an integrated headset that ensures smooth steering. The DEDA x Van Rysel Superbox EVO stem is both lightweight and stiff.
Stem lengths:
- XS: 80 mm
- S: 90 mm
- M: 100 mm
- L: 110 mm
- XL: 120 mm
Paired with the DEDA Superzero RS carbon handlebar, it delivers aerodynamic efficiency and comfort. Deda measures width from the bar ends, meaning a 400 mm handlebar (measured between axles) is labeled as 420 mm.
Handlebar widths (measured between axles):
- XS/S: 400 mm
- M/L: 420 mm
- XL: 440 mm
SRAM FORCE GROUPSET AND QUARQ POWER METER
The RCR comes equipped with the SRAM Force AXS groupset and Quarq power meter, essential for cyclists looking to optimize their training. The fully electronic shifting system features two separate batteries (one per derailleur), with customization and ride data available through the SRAM app
Total drivetrain weight: 2920 g (6.44 lbs) with power meter.
SRAM Force Drivetrain
The RCR is built with a SRAM Force AXS drivetrain, offering precise, wireless shifting with easy compatibility between Force and Rival components.
Components:
- Shifters: Force AXS D2
- Front Derailleur: Force AXS D2
- Rear Derailleur: Force AXS D2 (Max 36T)
- Cassette: Force XG 1270 D1 10-33
- Crankset: Force D2 DUB PM 48/35T
- Chain: SRAM Force
Crank Length by Size:
- XS: 165 mm
- S: 170 mm
- M: 172.5 mm
- L/XL: 175 mm
Drivetrain Maintenance
Regular maintenance is key, especially in wet or dirty conditions.
Check chain wear often using a chain wear indicator.
A well-maintained drivetrain lasts longer and performs better.
Drivetrain Lifespan
When purchasing a bike, consider the long-term cost of drivetrain maintenance. Lifespan varies based on care and riding conditions, but here are general estimates:
Chain lifespan: ~3,100 miles (5,000 km)
Cassette lifespan: ~6,200–7,500 miles (10,000–12,000 km)
A neglected chain can skip, causing premature wear or even damage to your frame. Regular maintenance is key.
Disc Brakes
The RCR is equipped with SRAM Force hydraulic disc brakes, delivering powerful, progressive stopping performance. It features 160 mm front and 140 mm rear rotors for optimal control.
Bedding-In Process:
To maximize braking efficiency, gradually brake 20 times at low speed (12 mph / 20 km/h), then repeat at 18 mph (30 km/h). Be sure to bed in both brakes to enhance friction between the pads and rotors.
Hydraulic Brake Maintenance
Hydraulic brakes operate within a closed system, with a hose maintaining the seal between the brake lever and caliper.
Over time, a slight loss of pressure is normal, which can reduce braking efficiency. If your brake lever feels too soft or pulls all the way to the handlebar, it's time to bleed the system. This process requires specialized tools and expertise.
Warning and adjustment
Never squeeze the brakes without a wheel installed—this can cause the brake pads to stick together.
If the rotor rubs against the pads, follow these steps to realign the caliper:
- Loosen the brake caliper bolts.
- Squeeze the brake lever firmly.
- While holding the brake, tighten the caliper bolts.
If the issue persists, visit your nearest bike shop for further adjustment.
Zipp 404 Firecrest Wheels
The Zipp 404 wheel is designed for peak performance, featuring a 100% carbon, tubeless-ready, hookless rim. With a 58 mm depth—matching its predecessor—it now includes the new ZR1 hub for smoother operation and reduced friction when freewheeling.
- Internal width: 23 mm, optimized for 28 mm tires
- Recommended pressure: 44–73 psi (3–5 bar max)
- Weight (pair): 3.24 lbs (1470 g)
Continental GP 5000 S TR Tire
Experience a faster, smoother ride with enhanced puncture resistance thanks to Continental GP 5000 S Tubeless Ready tires. Designed for performance and reliability, they deliver low rolling resistance and superior grip.
- Size: 700x30
- Recommended Pressure: 4–6.5 bar (58–94 psi)
- Weight: 300 g
Tubeless or Inner Tube?
We recommend converting your tires to tubeless using the included tubeless valves.
Why go tubeless?
- More comfort
- Better efficiency
- Self-sealing for small punctures
However, always carry an inner tube in your repair kit for larger punctures.
Position

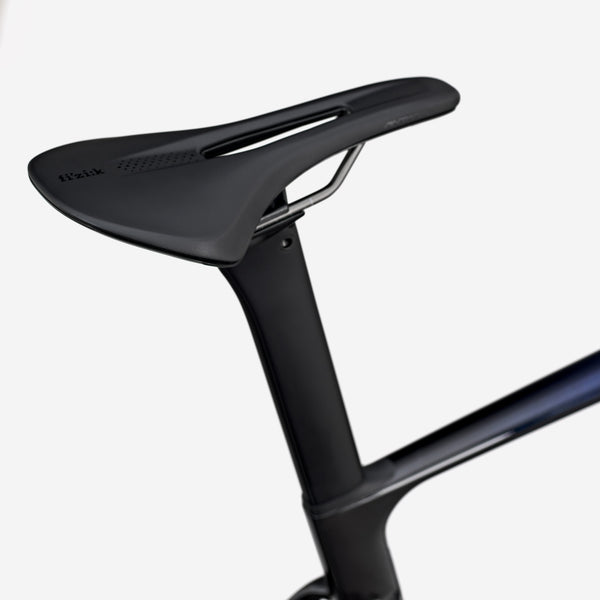

RCR Carbon Seatpost features a -15mm offset for an aggressive riding position.
Seat Post Length by Size:
- XS: 316 mm
- S: 331 mm
- M: 356 mm
- L/XL: 406 mm
This bike comes equipped with either the Fizik Argo Vento R5 or Fizik Antares R5 saddle, depending on the version. Developed in collaboration with pro racers, these saddles feature a short-nose design for improved stability and reduced pressure on soft tissue.
Saddle Weight: 225 g (140 mm)
Pedals
Sold without pedals.
Which Size?
Refer to the bike frame geometry table for precise sizing.
- Smaller size: More responsive and agile
- Larger size: Better comfort for long distances
If you're between sizes, choose based on your riding style and fit preference. For best results, we recommend a professional bike fit.
Important / Safety
Zipp wheels use a hookless rim design, meaning there’s no hook to hold the tire in place—air pressure secures it to the rim.
WARNING:
Always follow Zipp’s maximum pressure limit. Never exceed 73 psi (5 bar), or you risk tire failure.
Warranty
- Frame & Fork: 5 years
- Parts: 2 years (excluding wear items)
Product Disclaimer
Specifications and features may change without notice. We strive for accuracy but cannot guarantee all descriptions, images, or details are error-free. Variations do not warrant modifications, exchanges, or refunds. Products may be updated or discontinued at any time. For more info, contact customer support.
