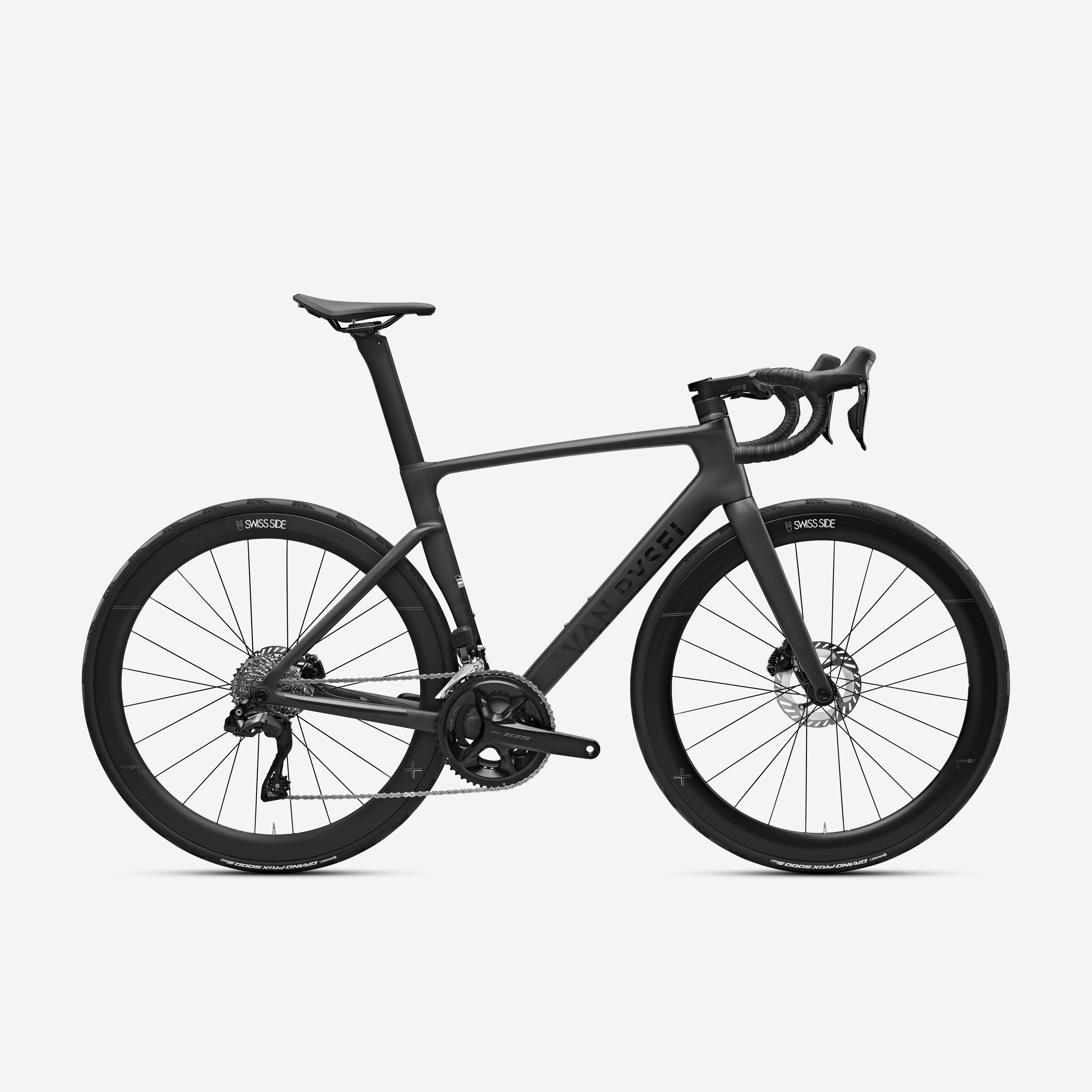

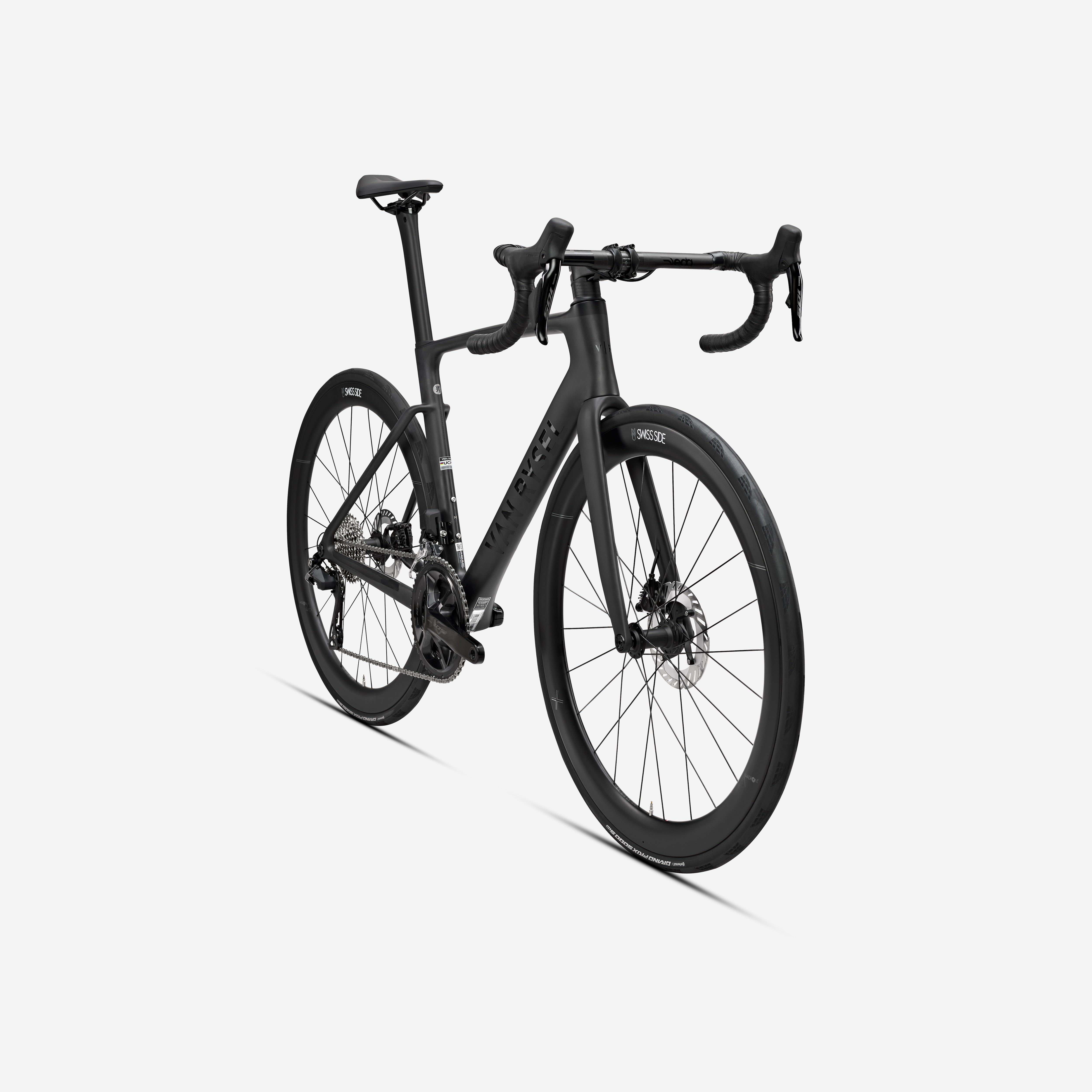

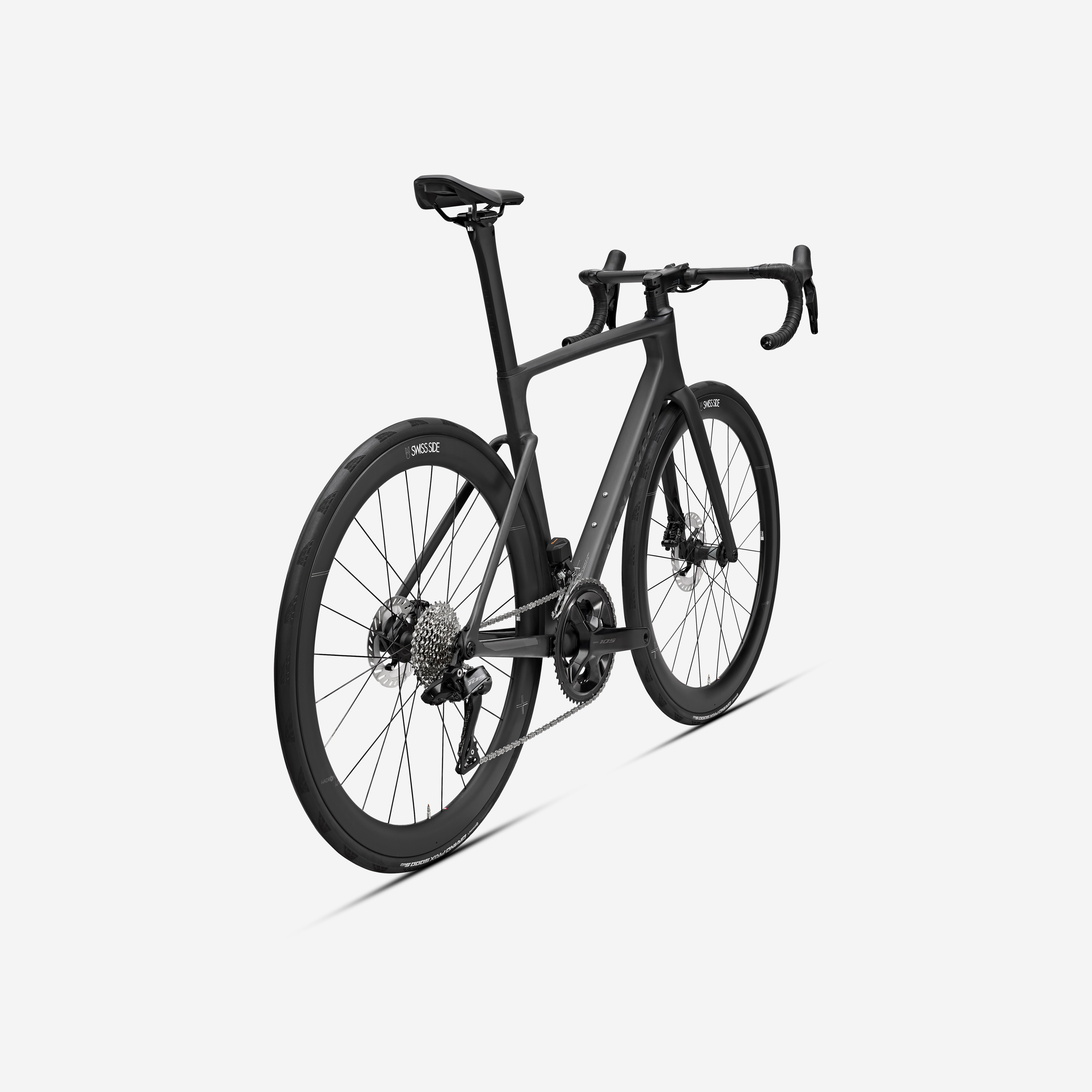

RCR 105 Di2

The RCR Range
The RCR lineup is built for cyclists who refuse to compromise. Every tube’s cross-section is engineered for optimal efficiency in key wind angles (-15° to +15°).

This "lightweight aero" bike strikes the perfect balance of weight, stiffness, and aerodynamics—delivering an exceptional ride. If you're looking for a race-winning machine, the RCR is it.

RCR vs. RCR Pro: What Sets Them Apart?

The Van Rysel RCR and RCR Pro share the same aggressive race geometry, but the difference comes down to carbon technology. The RCR uses high-modulus carbon for a stiff, efficient ride that delivers speed and responsiveness. The RCR Pro takes it further with super high-modulus carbon, reinforcing key stress points while shedding weight for an even more explosive feel. Designed for elite-level racing, the RCR Pro frame is the same one used by Decathlon AG2R’s WorldTour riders.

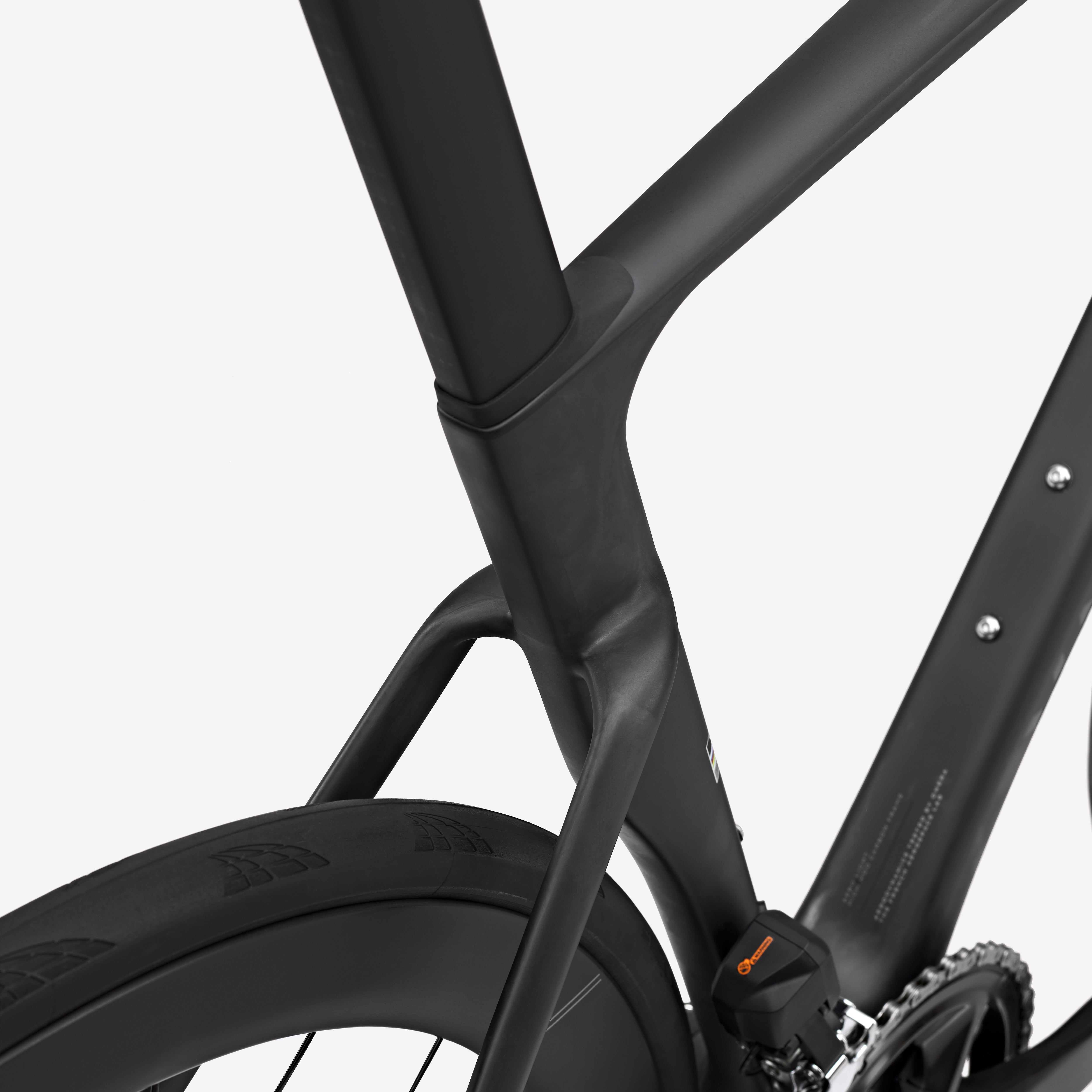

A Closer Look at the Frame
The RCR frame weight (size M, painted): 1.83 lbs (830 g)

RCR Pro frame weight (size M, painted): 1.74 lbs (790 g)
RCR fork weight (size M, painted): 0.84 lbs (380 g)
Tire clearance: Up to 33 mm
Color variations may cause slight weight differences (+/- 0.11 lbs | 50 g)

Never clamp a carbon frame (top tube, seat tube, down tube) in a work stand or bike rack—carbon is rigid but vulnerable to compression.

Several Finishes to Choose From

Depending on the groupset and wheel configuration, we offer different finishes so you can ride a model that reflects your style. The RCR and Pro frames feature a raw carbon finish with a matte varnish, leaving the carbon fibers exposed rather than covering them with paint. Every frame is unique, as each of the 450 individual pieces is hand-laminated in the mold, a process that saves up to 100 grams.

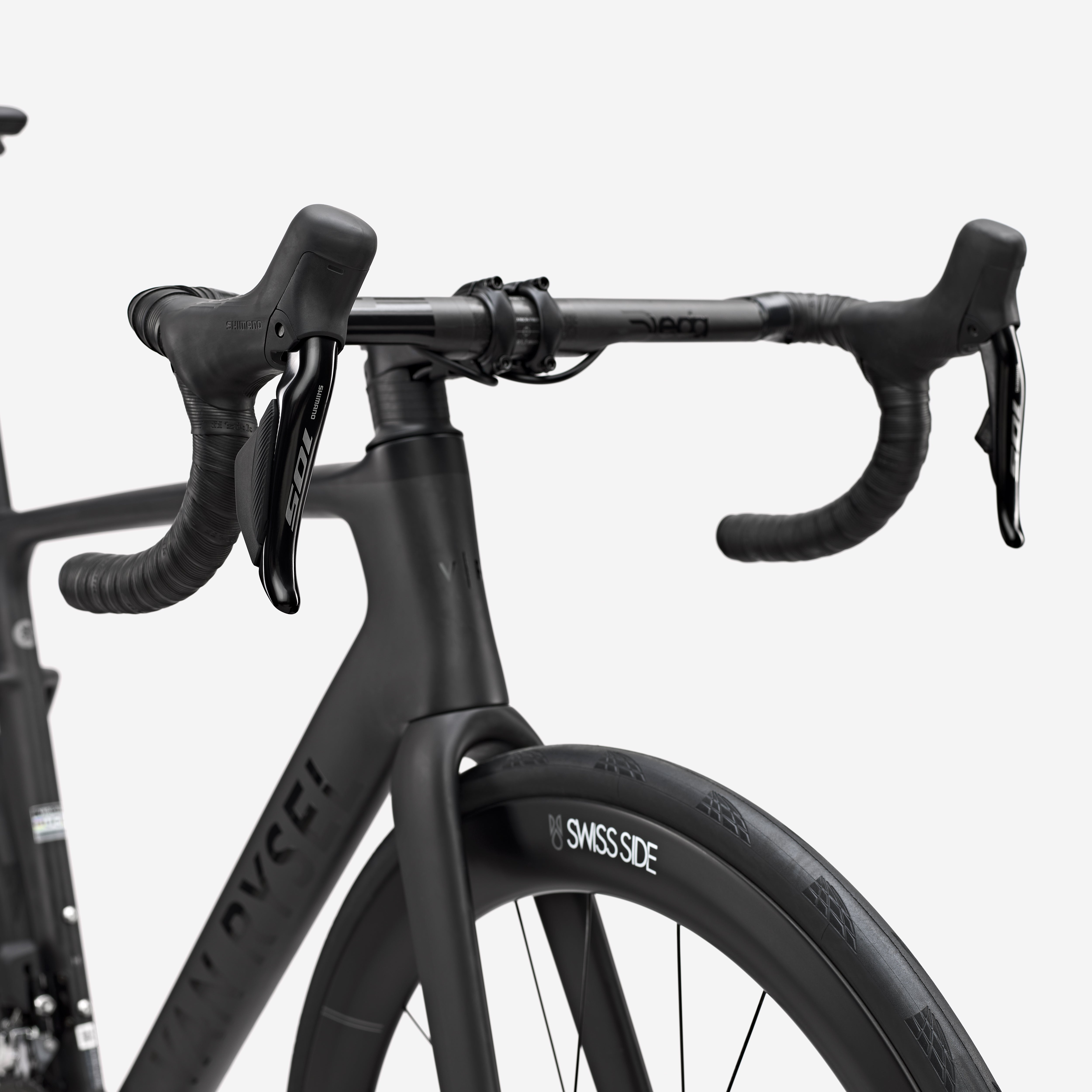

Cockpit

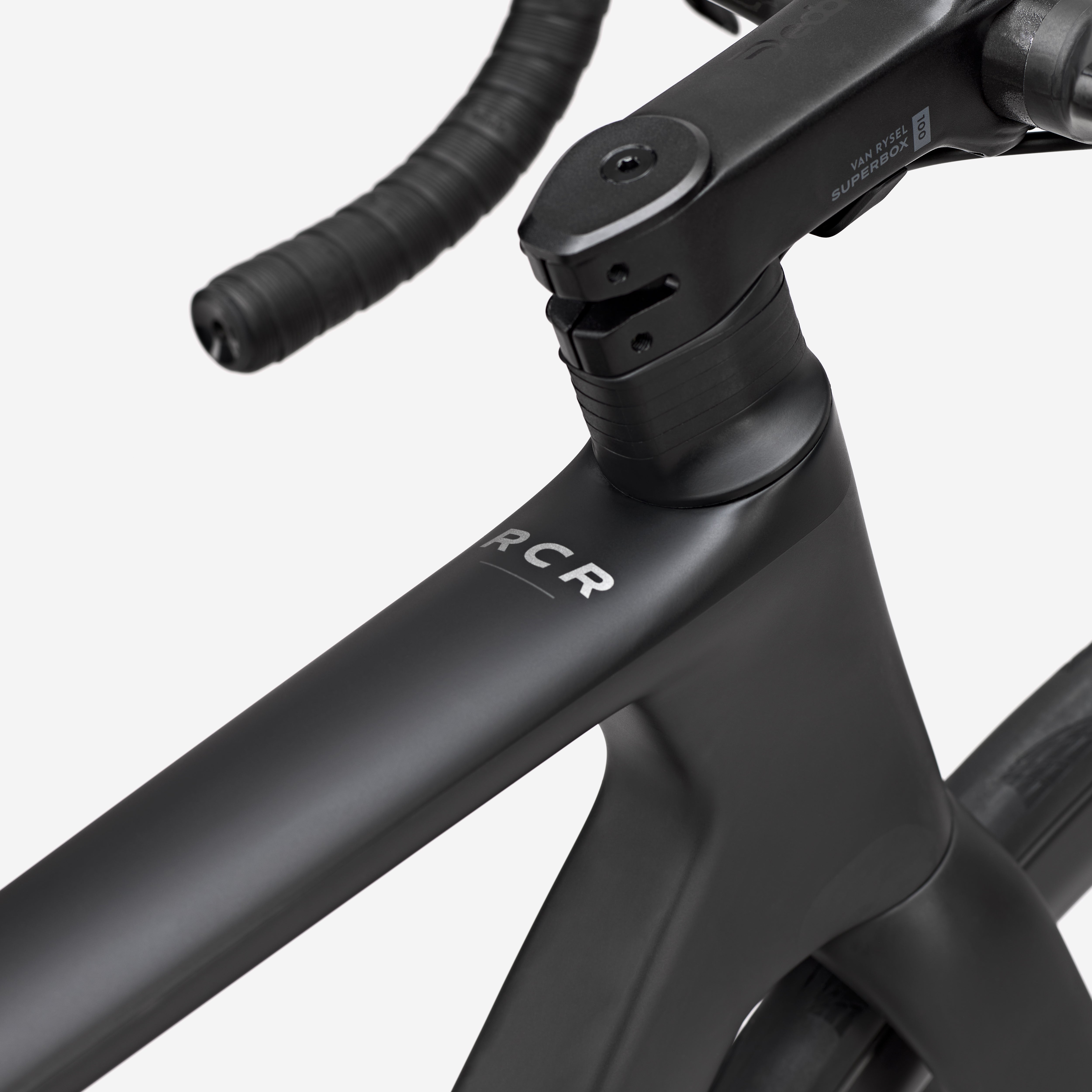

The RCR’s cockpit is designed for precise handling and easy maintenance, with an integrated headset that ensures smooth steering. The DEDA x Van Rysel Superbox EVO stem is both lightweight and stiff.

Stem lengths:

• XS: 80 mm
• S: 90 mm
• M: 100 mm
• L: 110 mm
• XL: 120 mm

Paired with the DEDA Superzero RS carbon handlebar, it delivers aerodynamic efficiency and comfort. Deda measures width from the bar ends, meaning a 400 mm handlebar (measured between axles) is labeled as 420 mm.

Handlebar widths (measured between axles):

• XS/S: 400 mm
• M/L: 420 mm
• XL: 440 mm

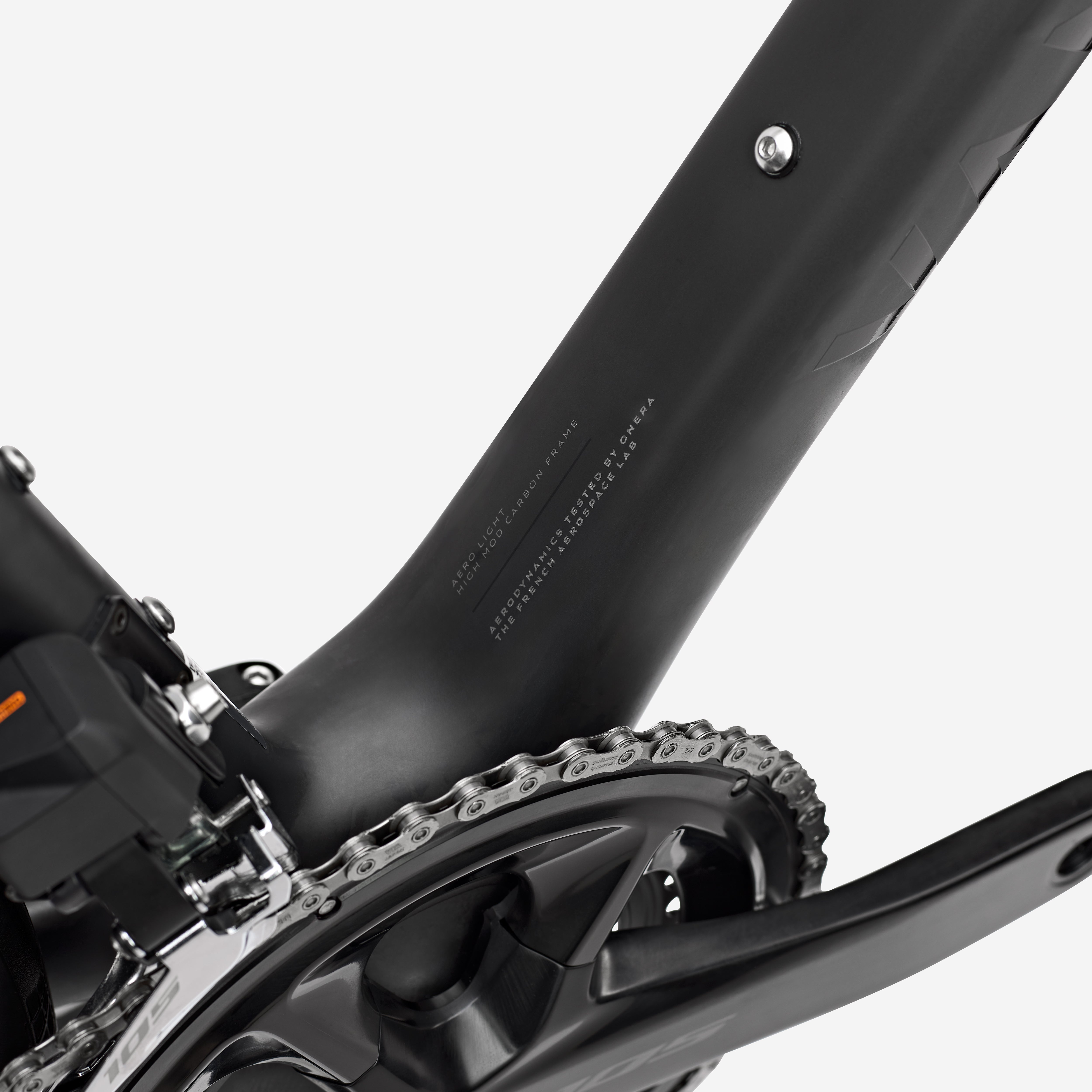

SHIMANO 105 Di2 & INPEAK Power Meter
The RCR features the SHIMANO 105 Di2 R7170 groupset for seamless electronic shifting, paired with an INPEAK power meter for precise training. Customize settings and track ride data with the Shimano E-Tube app.

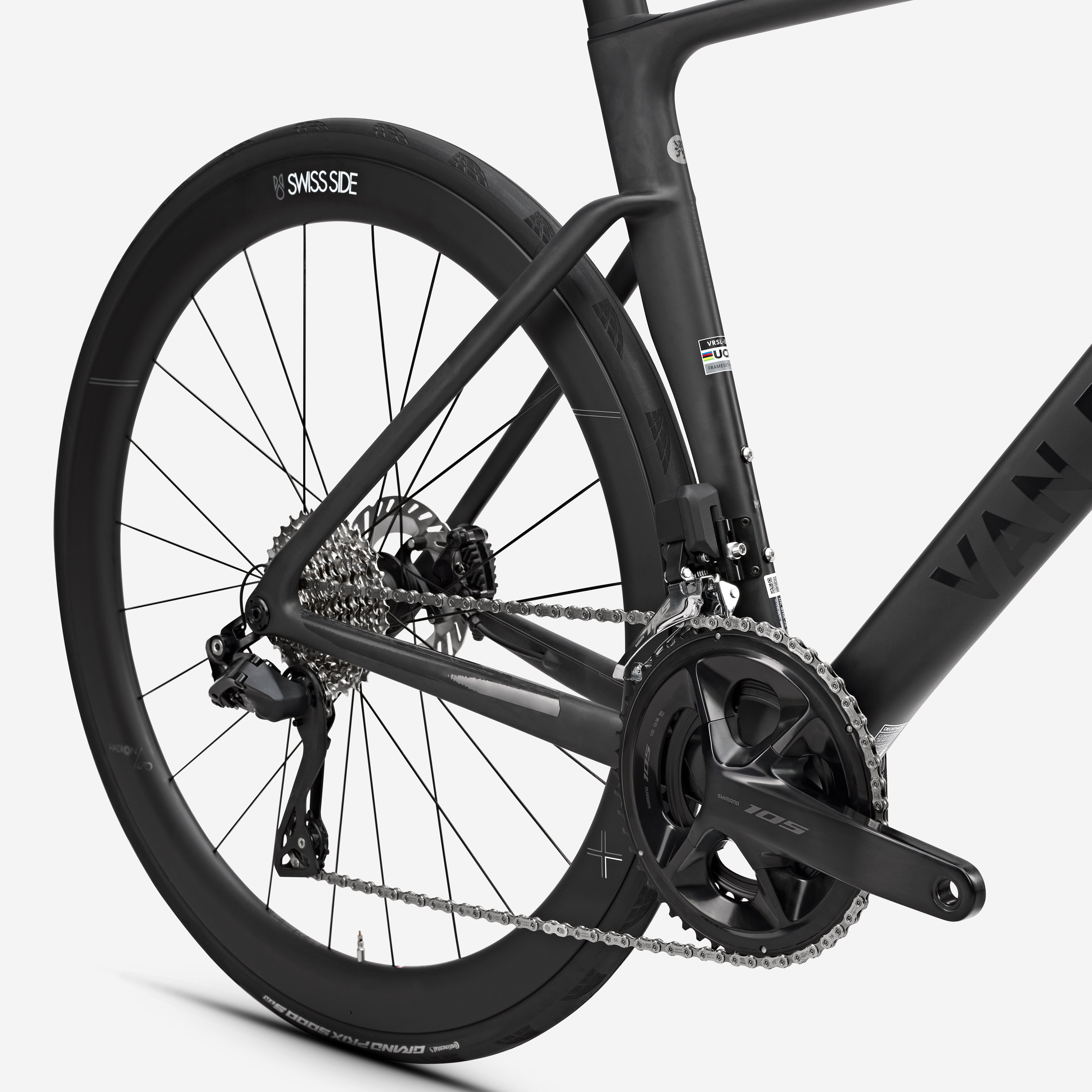

SHIMANO 105 Di2 Drivetrain

• Shifters: Shimano ST-R7170
• Front Derailleur: Shimano FD-R7150, 105 Di2
• Rear Derailleur: Shimano RD-R7150, 105 Di2, 12-speed
• Cassette: Shimano R7100, 11-34T
• Crankset: Shimano R7100, 52/36T
• Chain: Shimano 12-speed 7100

Crank Length by Size:

• XS/S: 170mm
• M: 172.5mm
• L: 175mm

Drivetrain Maintenance
Regular maintenance is key, especially in wet or dirty conditions.

Check chain wear often using a chain wear indicator.
A well-maintained drivetrain lasts longer and performs better.

Drivetrain Lifespan
When purchasing a bike, consider the long-term cost of drivetrain maintenance. Lifespan varies based on care and riding conditions, but here are general estimates:

Chain lifespan: ~3,100 miles (5,000 km)
Cassette lifespan: ~6,200–7,500 miles (10,000–12,000 km)

A neglected chain can skip, causing premature wear or even damage to your frame. Regular maintenance is key.

Disc Brakes

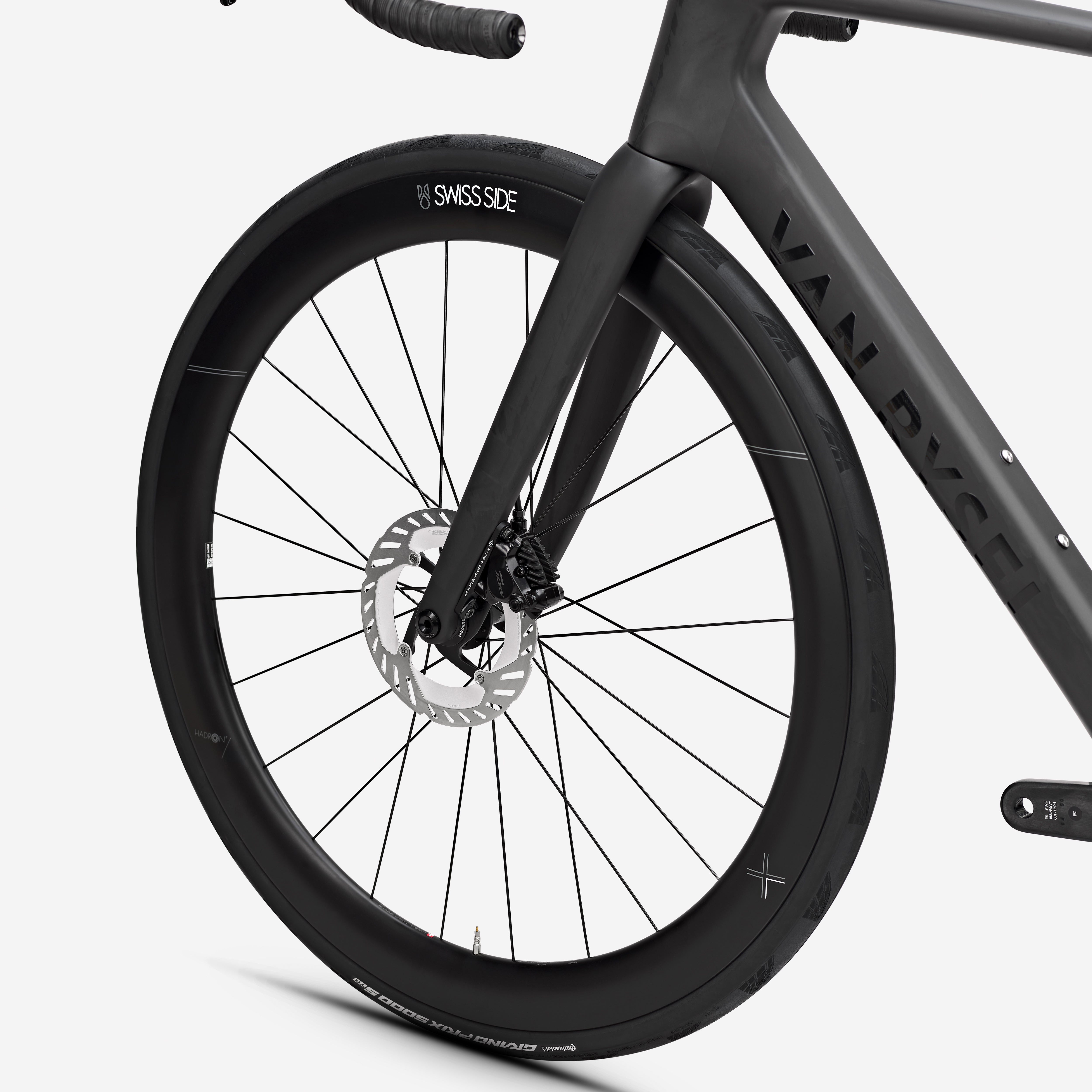

The RCR is equipped with Shimano 105 hydraulic disc brakes, delivering smooth, powerful, and progressive braking. With an RT-CL800 160mm rotor up front and a 140mm rotor in the rear, this system offers superior control and reliability in all conditions.

Bedding-In Process:
To maximize braking efficiency, gradually brake 20 times at low speed (12 mph / 20 km/h), then repeat at 18 mph (30 km/h). Be sure to bed in both brakes to enhance friction between the pads and rotors.

Hydraulic Brake Maintenance
Hydraulic brakes operate within a closed system, with a hose maintaining the seal between the brake lever and caliper.

Over time, a slight loss of pressure is normal, which can reduce braking efficiency. If your brake lever feels too soft or pulls all the way to the handlebar, it's time to bleed the system. This process requires specialized tools and expertise.

Warning and Adjustment
Never squeeze the brakes without a wheel installed—this can cause the brake pads to stick together.

If the rotor rubs against the pads, follow these steps to realign the caliper:

1. Loosen the brake caliper bolts.
2. Squeeze the brake lever firmly.
3. While holding the brake, tighten the caliper bolts.

If the issue persists, visit your nearest bike shop for further adjustment.

Swiss Side Hadron Classic 500 wheels

The Swiss Side Hadron Classic 500 wheels are tubeless-ready and hooked, designed for the perfect balance of durability and aerodynamics. Optimized for 25mm and 28mm tires, they deliver smooth, efficient performance.

Max recommended pressure: 102 psi (7 bar)

Weight (pair): 3.5 lbs (1600g)

Continental GP 5000 S TR Tire

Experience a faster, smoother ride with enhanced puncture resistance thanks to Continental GP 5000 S Tubeless Ready tires. Designed for performance and reliability, they deliver low rolling resistance and superior grip.

Size: 700x28
Recommended Pressure: 4–6.5 bar (58–94 psi)
Weight: 280 g (9.9 oz)

Tubeless or Inner Tube?
We recommend converting your tires to tubeless using the included tubeless valves.

Why go tubeless?

• More comfort
• Better efficiency
• Self-sealing for small punctures

However, always carry an inner tube in your repair kit for larger punctures.

Position
RCR Carbon Seatpost features a -15mm offset for an aggressive riding position.

Seat Post Length by Size:

• XS: 316 mm
• S: 331 mm
• M: 356 mm
• L/XL: 406 mm

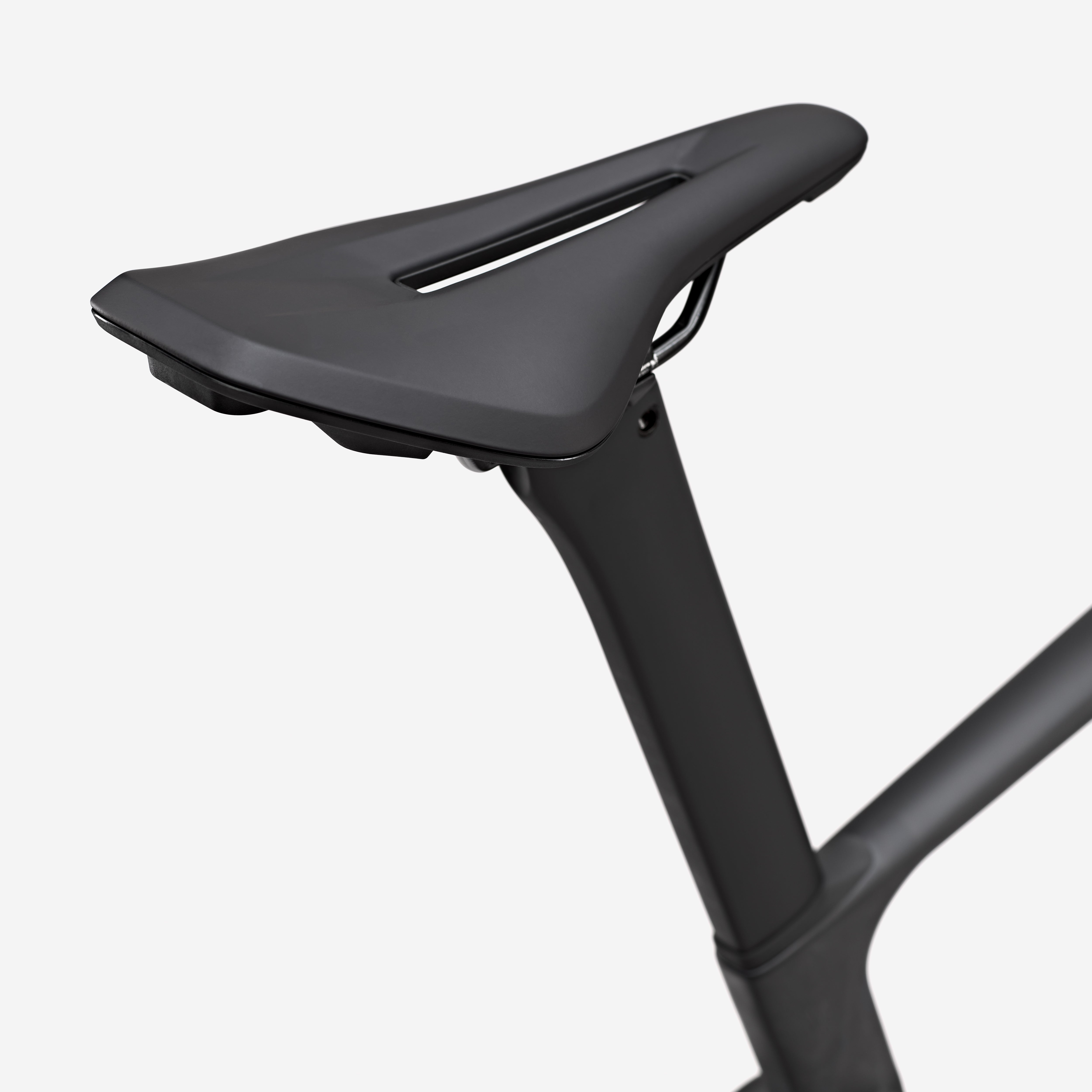

The 140mm Decathlon Road Light saddle features a short-nose design for enhanced stability and pressure relief in the soft tissue area.

Weight: 8.8 oz (250g)

Pedals
Sold without pedals.

Which Size?
Refer to the bike frame geometry table for precise sizing.

• Smaller size: More responsive and agile
• Larger size: Better comfort for long distances

If you're between sizes, choose based on your riding style and fit preference. For best results, we recommend a professional bike fit.

Warranty

• Frame & Fork: 5 years
• Parts: 2 years (excluding wear items)

Product Disclaimer

1. Specifications and features may change without notice. We strive for accuracy but cannot guarantee all descriptions, images, or details are error-free. Variations do not warrant modifications, exchanges, or refunds. Products may be updated or discontinued at any time. For more info, contact customer support.
